Engine canting to exhaust side

PostPost by: MikeB » Mon Sep 30, 2019 3:57 pm

Folks

Have the engine reinstalled in my 71 Sprint, we bought new engine mounts and reckoned we had them on the correct sides, with the metal fail safe to the top and spacers in the exhaust side.

However on fitting the gear lever stub to the ‘box, the plastic dome is hard against the side of the hole in the chassis and cannot be removed.

The engine slopes across the car to left/passenger side, is that correct?

Cheers

Mike
MikeB
First Gear
First Gear

Posts: 41
Joined: 30 May 2018
Location: Belfast

PostPost by: William2 » Mon Sep 30, 2019 4:08 pm

Hi Mike, yes the engine is supposed to be slightly canted over so that the Weber/Dellorto carbs have adequate clearance above the grp footwell top.
William2
Fourth Gear
Fourth Gear

Posts: 911
Joined: 20 Jan 2013
Location: West Sussex

PostPost by: types26/36 » Mon Sep 30, 2019 4:20 pm

Do you have the two spacers on the gearbox mounting?
Attachments
chassis-with-spacers.jpg and
Brian
64 S2 Roadster
72 Sprint FHC
User avatar
types26/36
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 3613
Joined: 11 Sep 2003
Location: U.K.

PostPost by: MikeB » Mon Sep 30, 2019 4:38 pm

Yes spacers are in
Cheers

Mike
MikeB
First Gear
First Gear

Posts: 41
Joined: 30 May 2018
Location: Belfast

PostPost by: Concrete-crusher » Tue Oct 01, 2019 6:48 am

Does not look right to me, I'm sure my engine is level from left to right

Steve
Concrete-crusher
Third Gear
Third Gear

Posts: 351
Joined: 09 Jun 2013
Location: UK

PostPost by: oldelanman » Tue Oct 01, 2019 7:48 am

Similar problem discussed at length here .... viewtopic.php?f=36&t=40453

Eventually resolved by fitting uprated engine mounts.
Roger
S4 DHC
oldelanman
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 1521
Joined: 02 Jan 2008
Location: Dorset UK

PostPost by: MikeB » Tue Oct 01, 2019 10:34 am

Thanks for that link, interesting stuff, will recheck the engine mounts. One thing to note is that you cannot screw the heater valve onto the side of the head as it fouls the top of the passenger footwell, is that normal, do it need to be fitted before the engine is lowered in?

Cheers

Michael
Cheers

Mike
MikeB
First Gear
First Gear

Posts: 41
Joined: 30 May 2018
Location: Belfast

PostPost by: nigelrbfurness » Tue Oct 01, 2019 10:47 am

If you haven't bolted up the engine mounts you can usually jack the engine up enough to screw in the heater valve, though ideally you would fit it andvorient it before engine installation.
No doubt you've looked at the engine mounting thread but in short the exhaust side mount is a Ford part derived from the Anglia. The carb side is a Lotus part and does lift the engine at that side. However original mounts are very hard to find now and the latest repros may well vary in the amount of lift. If you don't use the correct handed mounts you will find no clearance under the carbs and may not be able to fit the airbox. All the above relates to the Elan S1-4 and Sprints, I have had very few +2s through my hands.
1970 S4SE/1760cc big valve/SA-AX block, L2s, 45DCOEs, 1978 Jensen GT, 1962 AH Sprite, Alfa-Romeo 159, 1966 Bristol Bus, 1947 AEC Regal bus.
nigelrbfurness
Third Gear
Third Gear

Posts: 350
Joined: 04 Apr 2008
Location: Dunmow, Essex, UK

PostPost by: MikeB » Tue Oct 01, 2019 11:34 am

Thank you.

Have the mounts on the right sides and both have the metal U facing down and are new, so should be right, but maybe need a set of the updated ones, as per the linked thread above, to regain the correct posture

Cheers

Michael
Cheers

Mike
MikeB
First Gear
First Gear

Posts: 41
Joined: 30 May 2018
Location: Belfast

PostPost by: rgh0 » Tue Oct 01, 2019 11:45 am

On an Elan the engine should tilt as yours does, if it does not then your mounts are shot or you dont have the high lift mount fitted on the Carb side ( or maybe have 2 high lift Lotus mounts fitted !). On a Plus 2 you dont need the Lotus high lift mount and the engine sits level as the footwells are lower so the carbs do not hit them. If you have a Spyder chassis for either Elan or Plus 2 then the mounts are fitted to the chassis not the block and standard Anglia mounts are used on both sides as the required lift for the Elan is built into the arms from the mount to the block.

All simple really and maybe a few other possible variations I have not thought of :lol:

cheers
Rohan
User avatar
rgh0
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 7114
Joined: 22 Sep 2003
Location: Melbourne, Australia

PostPost by: Concrete-crusher » Wed Oct 02, 2019 8:42 pm

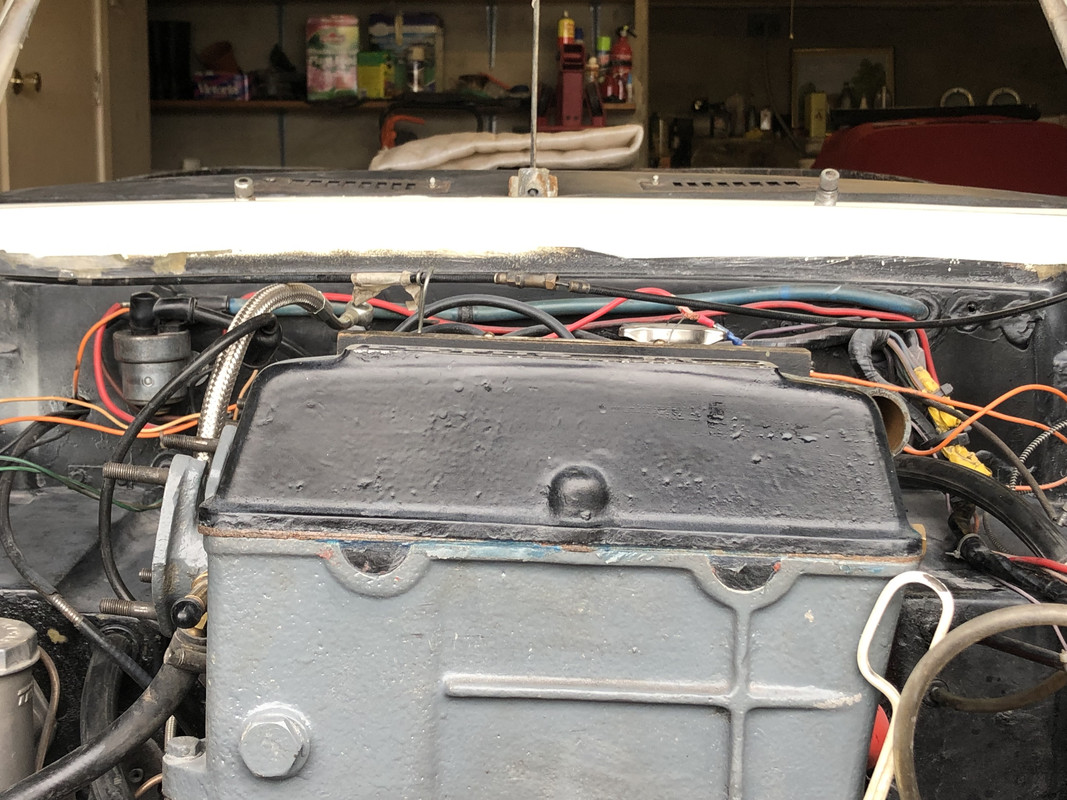

I still don't think that level of leaning looks right, here's a picture of my engine which is on standard mounts with weber carbs that clear the body

img_0539.jpg and


Steve
Concrete-crusher
Third Gear
Third Gear

Posts: 351
Joined: 09 Jun 2013
Location: UK

PostPost by: Elanman99 » Wed Oct 02, 2019 9:49 pm

I too thing the angle of tilt is greater than I have seen before, my S4 has half the tilt Mike's photo shows.

I've forgotten which side of the chassis Mike's gear box is close too but tilting (rotating) the engine will certainly move the gearlever housing sideways.

Ian
68 Elan S4 DHC. Built in a weekend from a kit (just like the advert said)
User avatar
Elanman99
Third Gear
Third Gear

Posts: 411
Joined: 11 Sep 2003
Location: Sandiway, Cheshire UK

PostPost by: richardcox_lotus » Thu Oct 03, 2019 6:50 am

My Sprint pretty much matches MikeB’s
Richard
'72 Sprint
richardcox_lotus
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 1109
Joined: 11 Jul 2004
Location: Kent

PostPost by: rgh0 » Thu Oct 03, 2019 10:56 am

The engine on an Elan with Webers is supposed to have a tilt. If we want to establish the design tilt angle then that is possible with a little simple geometric analysis of the high lift Lotus mount versus the standard mount and the width between them. Maybe my curiosity will enable me to find time to do that in the next few days if no one else beats me to it.

cheers
Rohan
User avatar
rgh0
Coveted Fifth Gear
Coveted Fifth Gear

Posts: 7114
Joined: 22 Sep 2003
Location: Melbourne, Australia

PostPost by: Quart Meg Miles » Thu Oct 03, 2019 9:01 pm

The two mounts look different, one having a curved arch and the other being square but I don't recall which way round. If they are both the same to look at then they are wrong.
Meg

26/4088 1965 S1½ Old and scruffy but in perfect working order; the car too.

Put your money where your mouse is, click on "Support LotusElan.net" below.
User avatar
Quart Meg Miles
Fourth Gear
Fourth Gear

Posts: 874
Joined: 03 Oct 2012
Location: West Sussex, UK (South coast)
